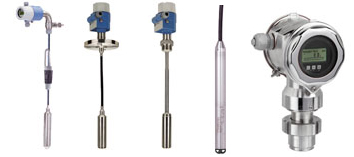

Deltapilot S高精度智能化静压液位变送器,具有抗冷凝结构的传感器,可以测量低温罐液位,通讯输出方式有Profibus PA、Foundation Fieldbus、 HART + 4~20mA。Waterpilot投入式静压液位计除具有不锈钢材质外,还有全塑材质的传感器,能耐海水腐蚀和一些废水的腐蚀,测量量程最大可达200m。
FMB70传感器:With Contite measuring cell, condensate proofed and long-term stable 过程连接:All common sanitary connections 压力范围:25mbar - 10bar 0.0375psi - 150psi 过程温度:-10 to +100°C +14 to +212°F (+135°C /+275°F short term) 精度:0.1% of the set span
DB51传感器:Rod version CONTITE measuring cell 过程连接:All common thread and flange connections 压力范围:10mbar - 10bar 0.15psi - 150psi 精度:0.1% up to turndown 10:1 认证:ATEX
DB51A传感器:Rod version CONTITE measuring cell 过程连接:All common thread and flange connections 压力范围:10mbar - 10bar 0.15psi - 150psi 精度:0.1% up to turndown 10:1 认证:CSA and FM
DB52传感器:Cable version CONTITE measuring cell 过程连接:All common thread and flange connections 压力范围:10mbar - 10bar 0.15psi - 150psi 精度:0.1% up to turndown 10:1 认证:ATEX
DB52A传感器:Cable version CONTITE measuring cell 过程连接:All common thread and flange connections 压力范围:10mbar - 10bar 0.15psi - 150psi 精度:0.1% up to turndown 10:1 认证:CSA and FM
DB53传感器:Cable version with CONTITE measuring cell 过程连接:With mounting clamp, sensor cable up to 200m 压力范围:10mbar - 10bar 0.15psi - 150psi 精度:0.1% up to turndown 10:1 认证:ATEX
DB53A传感器:Separate mounting of housing and electroic insert CONTITE measuring cell 过程连接:With mounting clamp, sensor cable up to 200m 压力范围:10mbar - 10bar 0.15psi - 150psi 精度:0.1% up to turndown 10:1 认证:CSA and FM
FMX167传感器:Ceramic 过程连接:Stainless steel mounting clamp;Stainless steel mounting screw 压力范围:100mbar - 20bar 1mH2O - 200mH2O 1.5psi - 300psi 3ftH2O - 600ftH2O 探针直径:22mm (0.87inch)for drinking water applications 42mm (1.66inch) for waste water applications 29mm (1.15inch) for saltwater applications 精度:0.2% of URV
